• Rated Payload: 5,000 kg
• Operating Weight with Standard Bucket: 16,640 kg
• Bucket Capacity: 2.6-5.5 m³

Engine

• Low speed engine and E-fan make fuel consumption better
• 3 stage air cleaner with 93% efficiency pre cleaner reduce earlier wearing, high efficiency fuel filter make engine work in good condition
• Cat technology damping mount reduce vibration failure

Efficient Hydraulic System

• Excellence modulation performance implement valve with mechanical control, make operation more accurately
• Full hydraulic load sensing steering and flow shared system save fuel and raise productivity, hydraulic cycle time is only 9.3s
• Word class pump and Cat technology lines routing deliver better reliability

Operator Station

• Mould formed cab with all trims design and more vents with HVAC make operator feel better
• First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
• Cat technology damping mount reduce vibration failure
• Slide window, fresh air inlet system make environment better



Drivetrain

• SEM made in house counter shaft transmission reliable and high efficiency, core components reliable improvement
• One stage and 3 element torque converter deliver higher efficiency
• 1st gear higher draw bar and 2nd gear faster speed make penetration easier and move material faster


Cooling System

• High performance aluminum cooling package suitable for most of severe applications
• Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
• Damping design reduce vibration failure



Solid Structure

• Validated by Cat technology FEA( Finite Element Analysis) and OMSA(On Machine Stress Analysis)
• Middle articulation frame less work space needed and reduce tire resistance
• Large spread hitch design in acticulation section can stand more load


Serviceability

• Quick pressure test ports on HYD and brake lines make diagnose easier
• Large wing hood door make service easier, approach to air cleaner, fuel filter and oil filter
• Large spread hitch design in acticulation section make operator easier to approach

Safety

• Slope switch make machine approach to hopper and pile in slope safety and easier
• High decibel Beacon and backup alarm make person around easy to attention
• 3 stage alarm system on panel
• 3 touch points entering and exiting cab make operator more safe

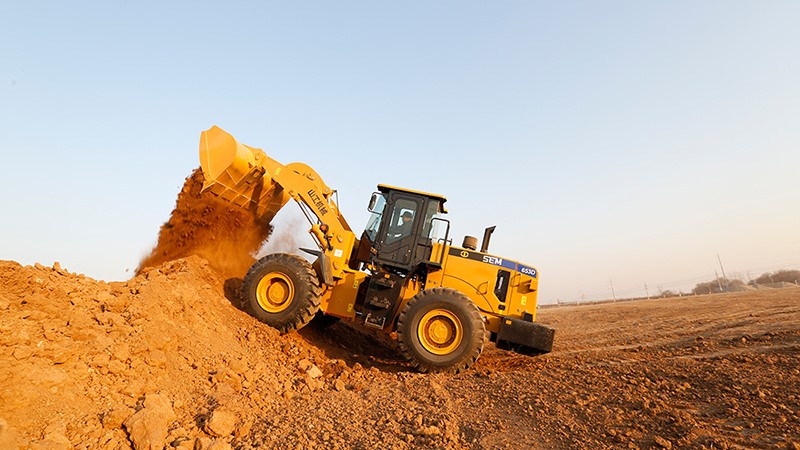

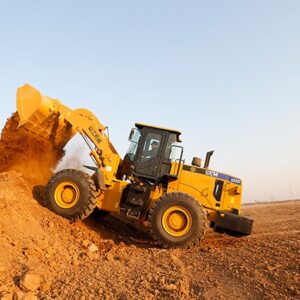

Machine Applications

• Landscaping, building, sewer/water in, local construction
• Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel
• Highway, street, tunnel, airport, residential commercial
